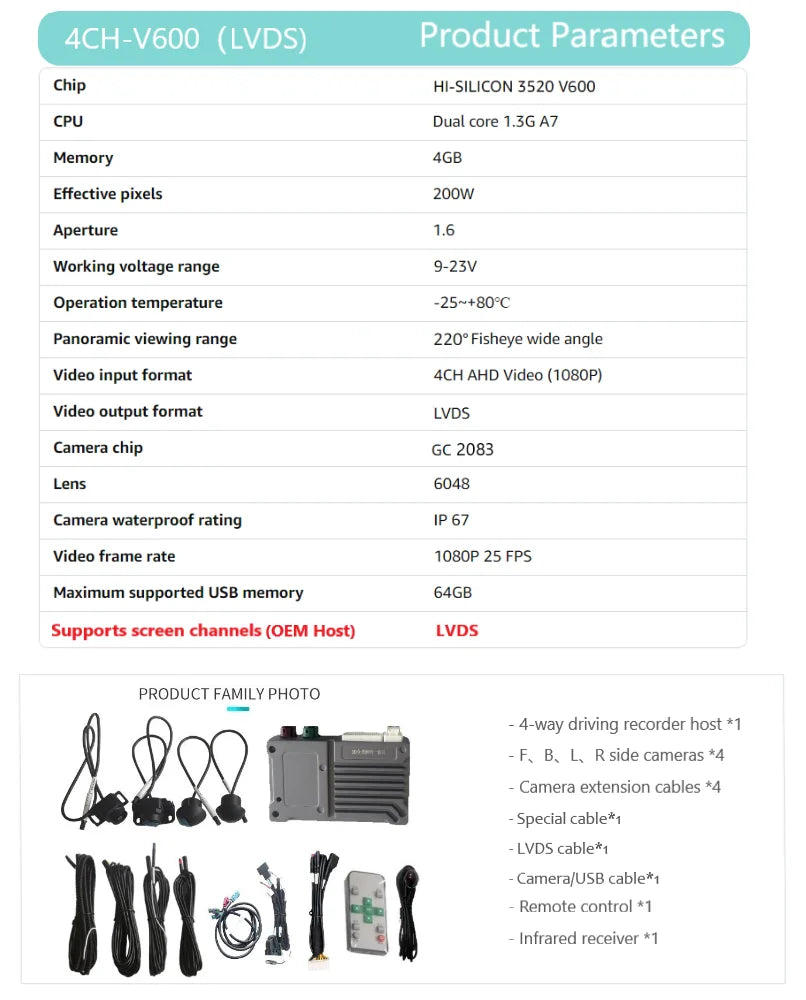

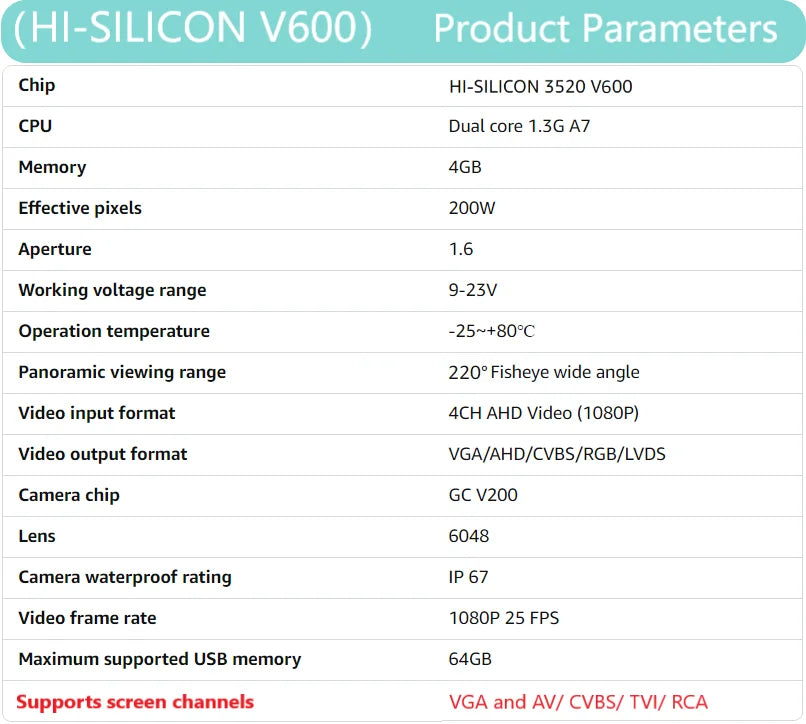

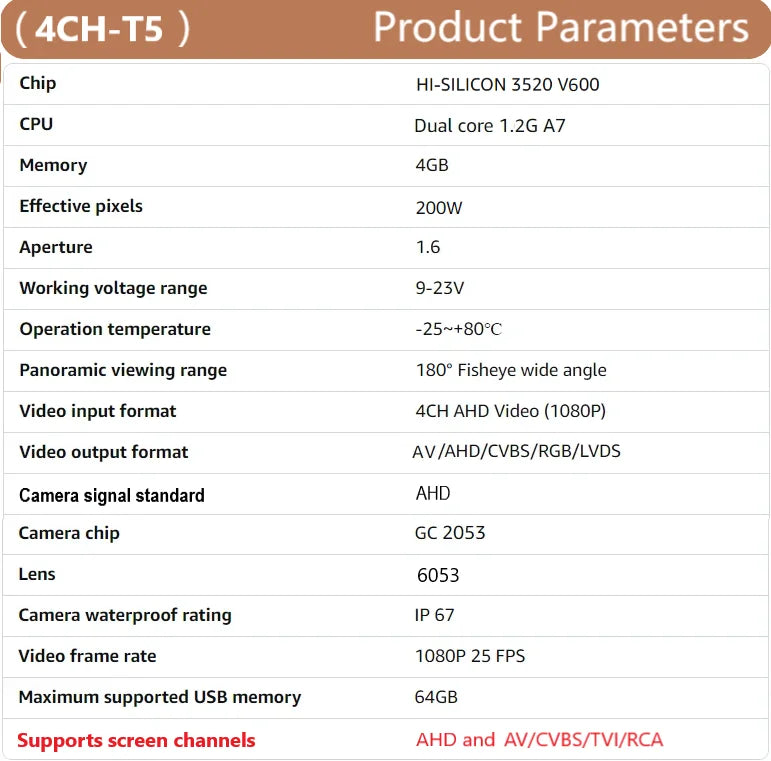

SPECIFICATIONS
Aperture: 1.6
Brand Name: driintel
CPU: Dual core 1.3G A7
Camera chip: GC 2053+6053
Camera waterproof rating: IP67
Certification: CE
Chip: HI-SILICON 3520 V600
Choice: yes
Display Size: 10.1"
Effective pixels: 200W
Frames Per Second: 25
High-concerned chemical: None
Imaging Sensor: 1/3 Color Cmos
Interface: AV-Out
Lens: 6 Glass
Max External Memory: 64G
Maximum supported USB memory: 64GB
Memory: 4GB
Memory Card Required Reding Speed: Class 10
Monitor Area: Side,FRONT,Rear
Number Of Lenses: 4
Operation temperature: -30~+75℃
Origin: Mainland China
Panoramic viewing range: 220°Fisheye wide angle/6P
Special Features: Waterproof,Wide Dynamic Range,Cyclic Recording,Real Time Surveillance,VOICE,Radar Detector,NIGHT VISION,Microphone,Time&Date Display,G-Sensor,Digital zoom,motion detection,cycle recording
Touch Screen: no
USB drive format: FAT 32
Video Code: H.264
Video Format: MPEG-4
Video input format: 4CH AHD Video (1080P)
Video output format: AHD/CVBS/AV/RGB/RCA
Working voltage range: 9-16V
【This system is suitable for】

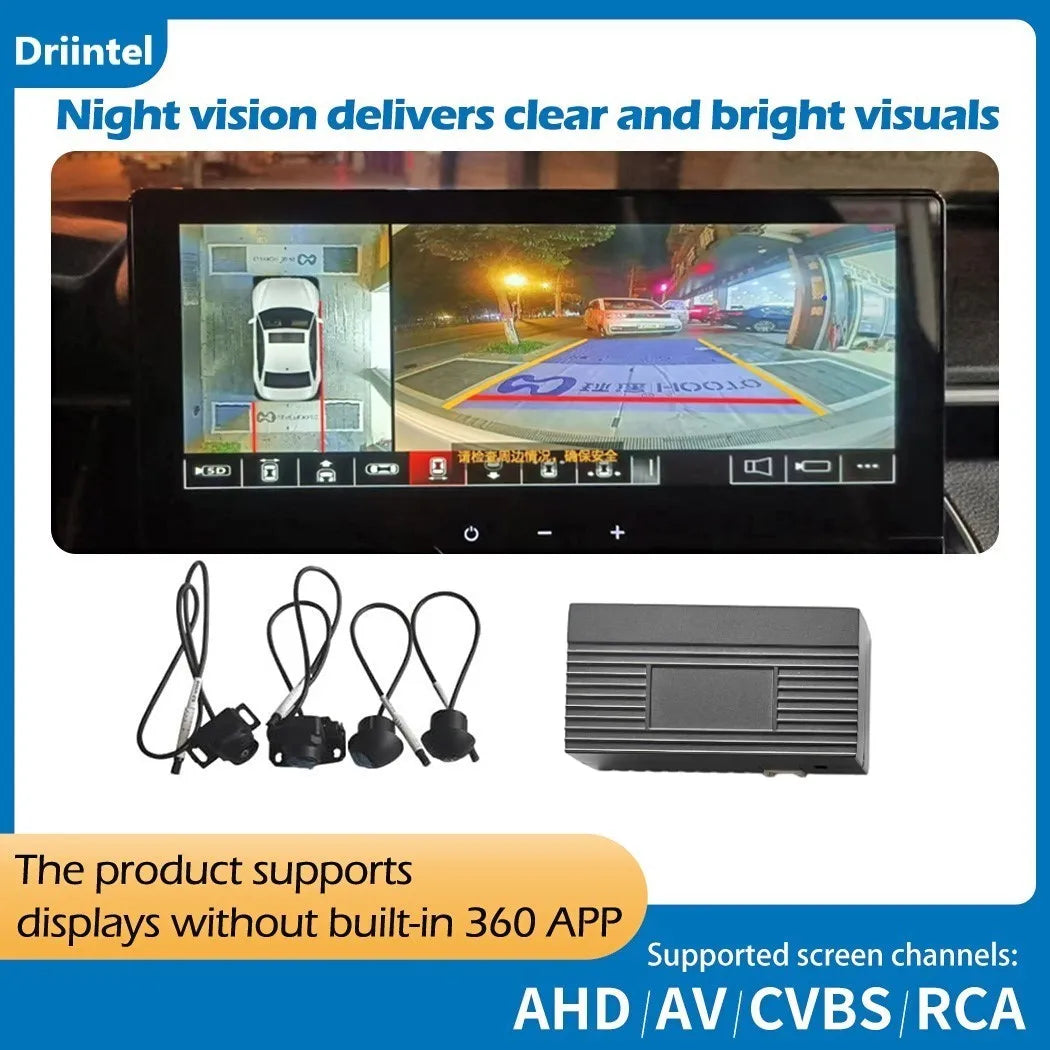

The product supports displays without built-in 360 APP
1. Android screen AHD and CVBS channels;
2. Ordinary navigation display AV/CVBS/TVI/RCA channel;
3. The original car central control screen that supports AHD and CVBS channels;
4. General display screen, supports visual camera input;
5. Please refer to the installation tutorial path. (Default is English; for other languages, you can use Google Translate).
https://qr61.cn/odreeH/qMboQzq?lid=cfpvqphmtcbtdfa08&rlid=cfpvqphmtcbtdfa08
【Product configuration】
1. The system supports AHD and CVBS/TVI/RCA central control screen channels. Standard accessories already include AHD and CVBS//TVI/RCA cables.
2. Calibration is required after installation. Please purchase the calibration cloth yourself.
3. The memory card needs to be purchased separately. It is recommended to use a high-speed card in Fat 32 format.
【Function demonstration】
You can view the entire vehicle in real time via the camera, eliminating blind spots and ensuring optimal safety by keeping a complete view of the vehicle at all times!
This effectively prevents accidents and avoids vehicle damage and delays.
【Item Description】
1. 【Intelligent Identification | Real-time Risk Warning】
✔ Equipped with HI-SILICON 3520 V600 chip + dual-core 1.3G A7 CPU.
✔ AI Collision：Alert Advanced AI detects pedestrians, vehicles & obstacles with real-time warnings.

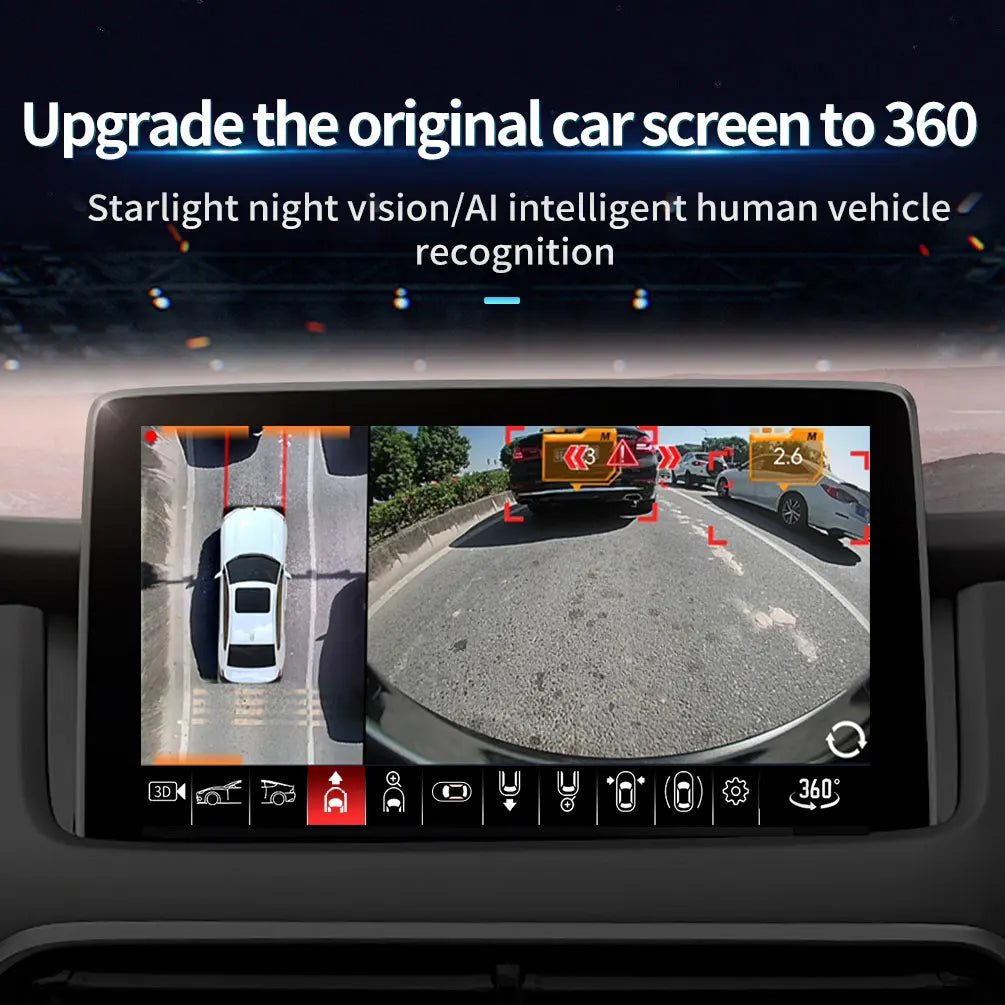

✔ Automatically open the 360-degree panoramic view through AI to view the environment around the car, and accurately display the distance between the front vehicles, thereby improving driving safety.
2. 【Four-way synchronous recording | 360° no-dead-angle monitoring】
✔ 4-Channel Recording: Capture front/rear/left/right simultaneously with 360° seamless stitching for zero blind spots.
✔ 360°panoramic stitching technology, support main screen/bird's eye view mode, reversing and narrow road driving are safer.
✔ Resolution: 1920x1080P
3. 【1080P Ultra-clear Night Vision | License Plate Clearly Visible】
✔ Real 1080P+Night Vision: sensorensures crisp license plate recognition even in darkness.
✔ Equipped with 1/3CMOS camera, the image quality and resolution are better than 1/3 CMOS camera.
✔ Support HDR anti-backlight, strong light/tunnel environment is still clear.r.
4. 【24-hour parking monitoring | Collision automatic lock】
✔ 24/7 Parking Guard: Time-lapse recording & impact detection protect your car 24 hours.
✔ G-Sensor collision lock, emergency video is encrypted separately to prevent overwriting.
✔ Maximum supported storage: 64G USB flash drive.
5.【Professional protection | Wide compatibility】
✔ Support AHD/CVBS/AV/RCA/TVI screen signal source input.
✔ Designed for sedans/SUVs/commercial vehicles, IP67 waterproof lens, compatible with all models of vehicles.
✔ Support voice control (optional).
【Applicable vehicle models】
✓ Commercial vehicle ✓ SUV ✓ Sedan ✓ Minivan ✓ Pickup
Suitable for vehicles up to 4.8 meters in length. For vehicles with extra-long bodies, a camera extension cable will need to be purchased separately.

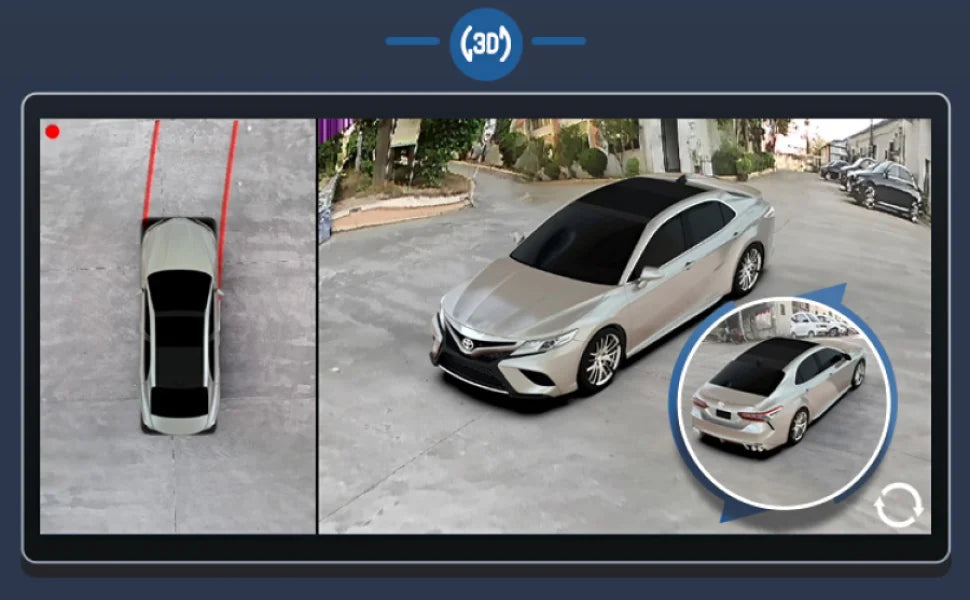

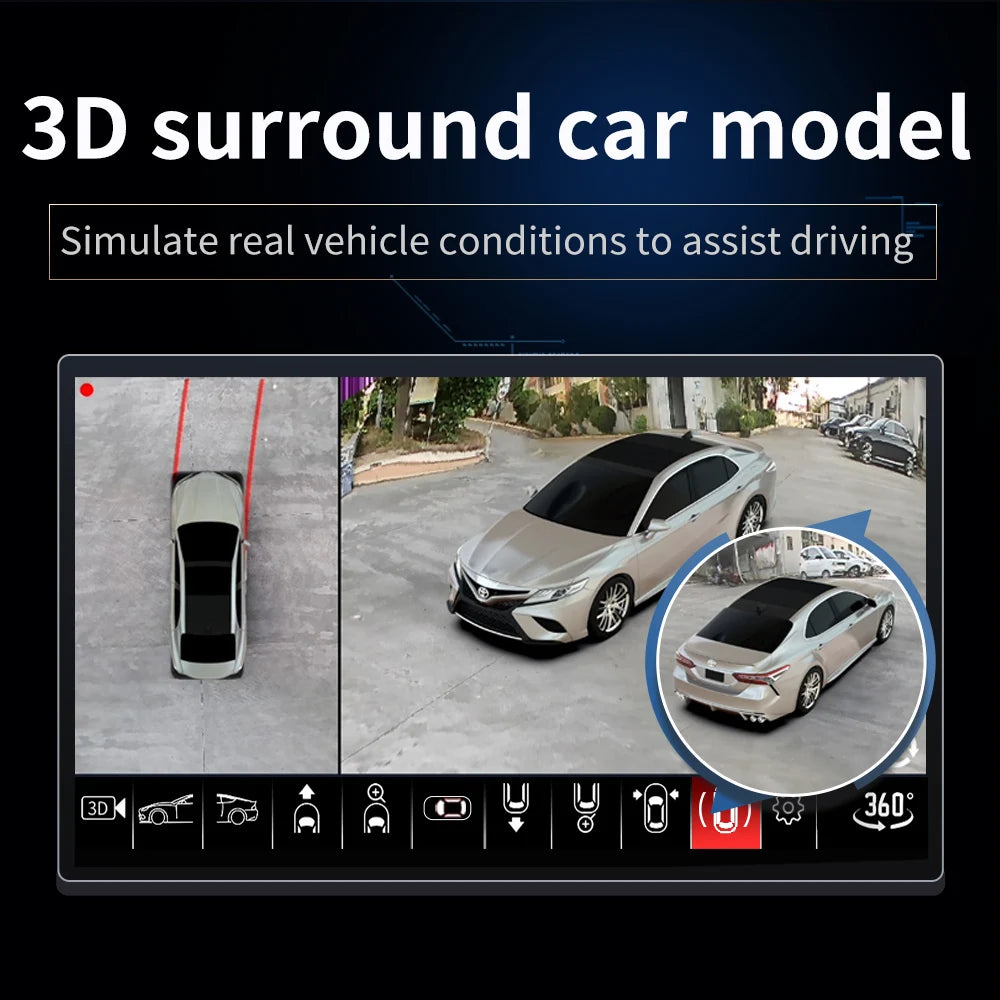

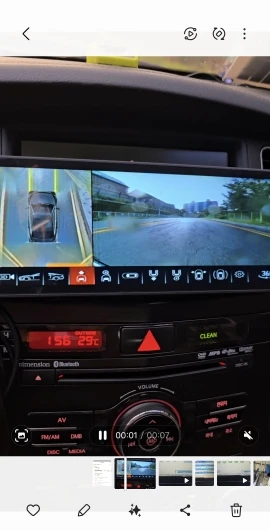

3D Surround
When the car starts, the 3D surround system starts to view the vehicle's surrounding environment;
Allowing you to quickly understand the situation around the vehicle
Al Collision Alert
Monitoring of pedestrians and vehicles in front and behind the vehicle, marking the distance,with real-time warnings.

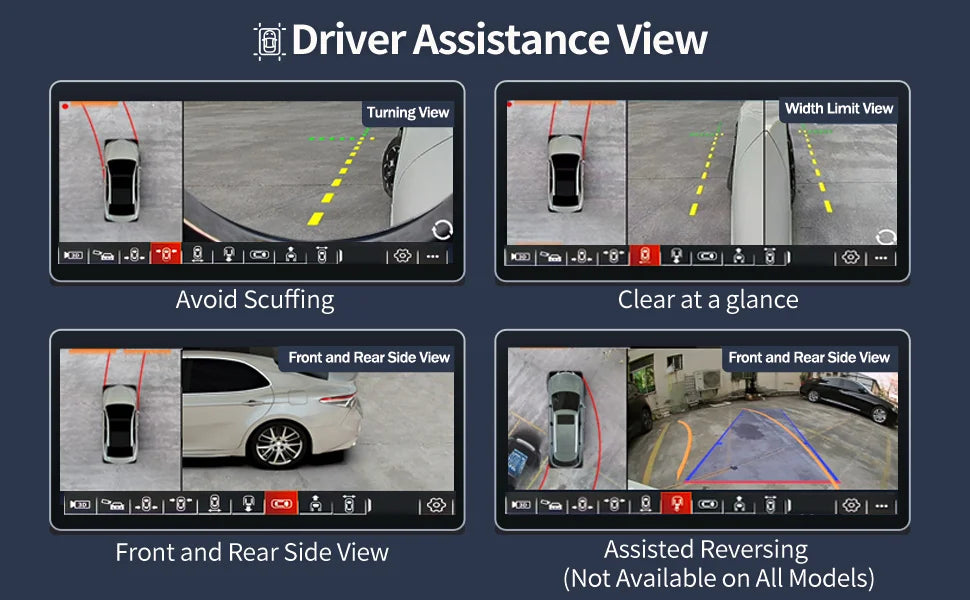

Driver Assistance View
Assisted driving view, say goodbye to blind spots, provide intuitive views of the vehicle's surroundings, effectively avoid body scratches/accidental damage, etc.

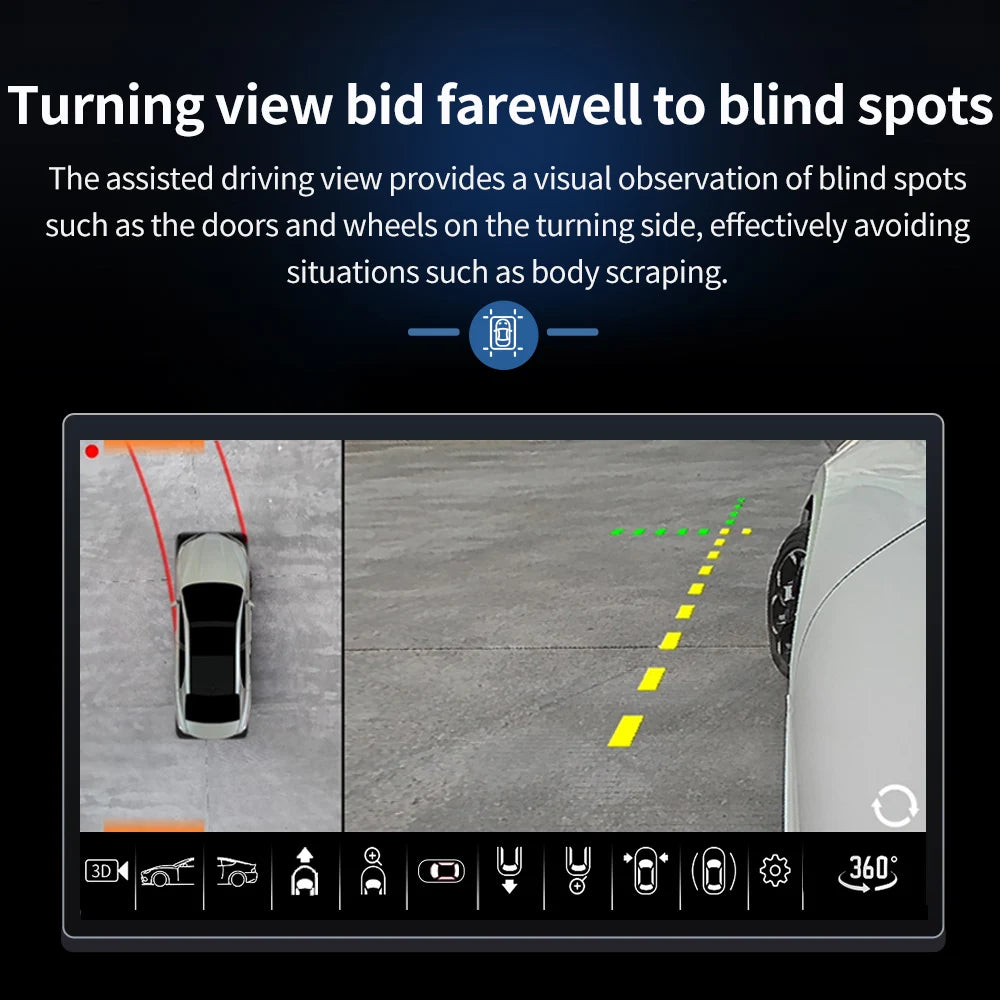

• Turning view
-- Provides blind spots such as doors and wheels on the turning side to avoid scratches.

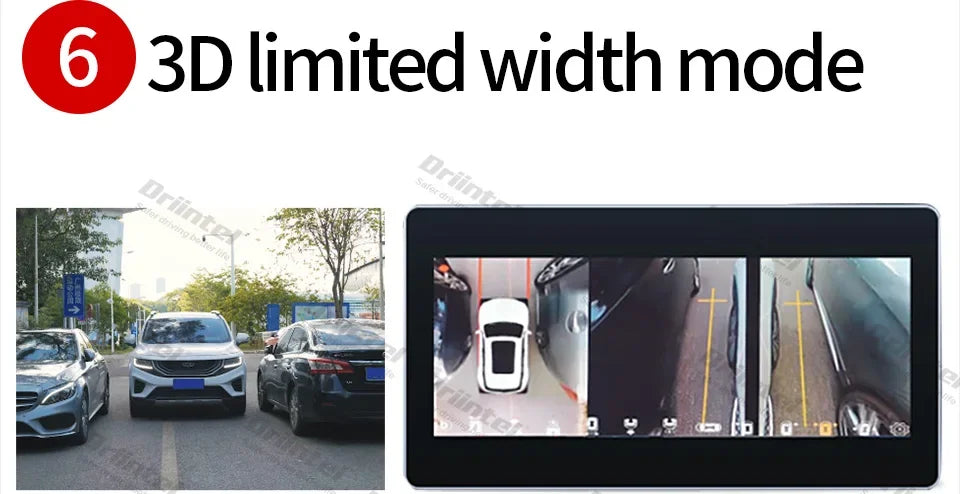

• Narrow road width limit view
-- Clear at a glance, check the blind spots on both sides of the vehicle body.

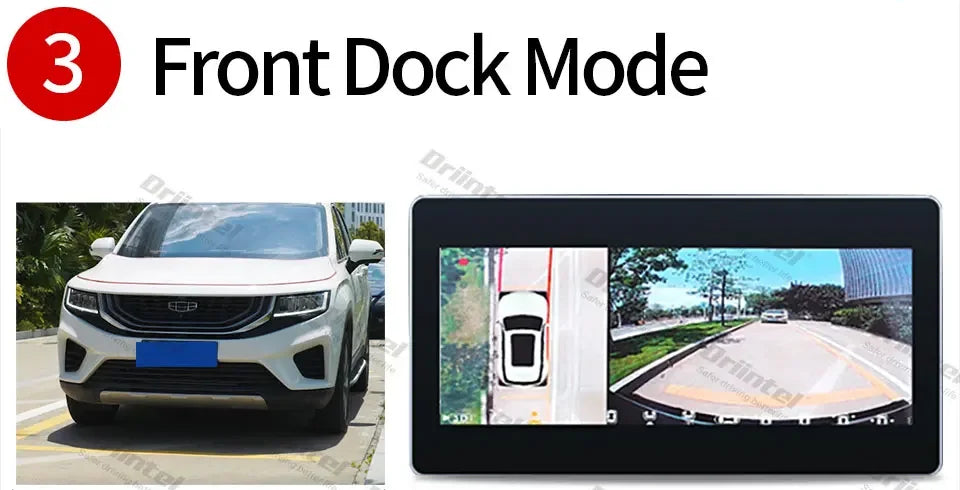

• Front and rear side view
-- Provides front and rear environment views.

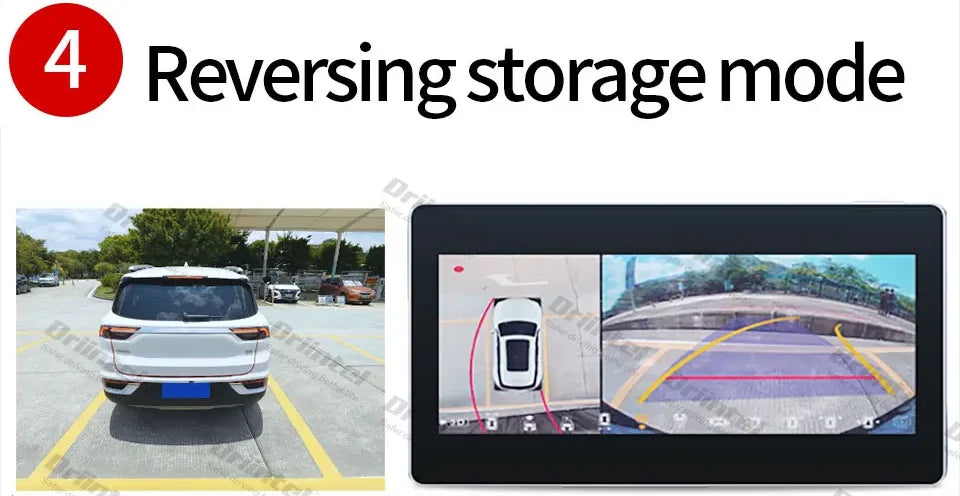

• Reversing assistance
-- Panoramic images and track lines follow, showing the view behind the car.

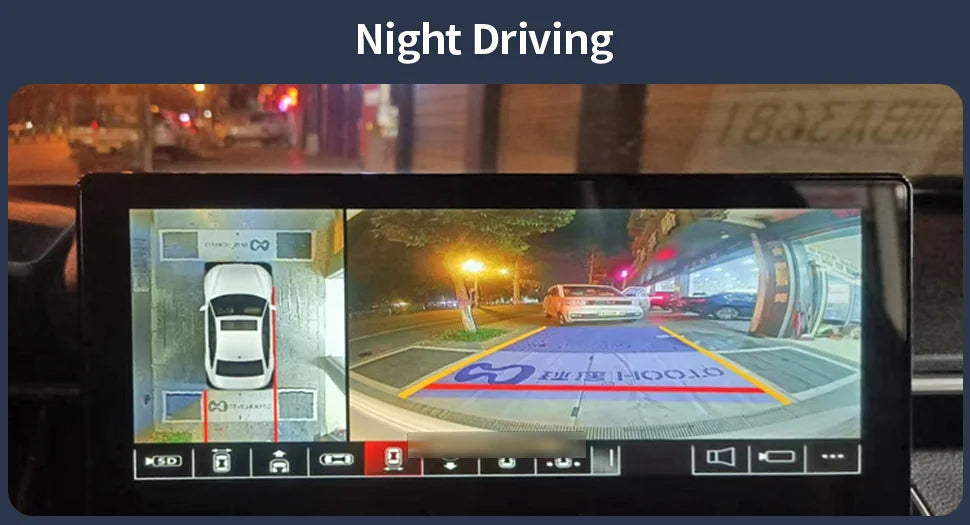

Night Driving
No light night vision, clearlyilluminates the night driving scene, escortingnight driving safety.

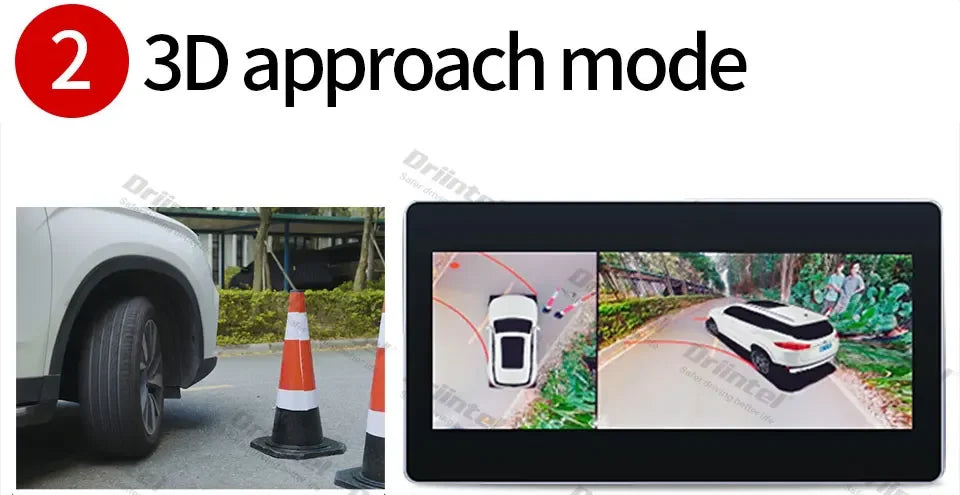

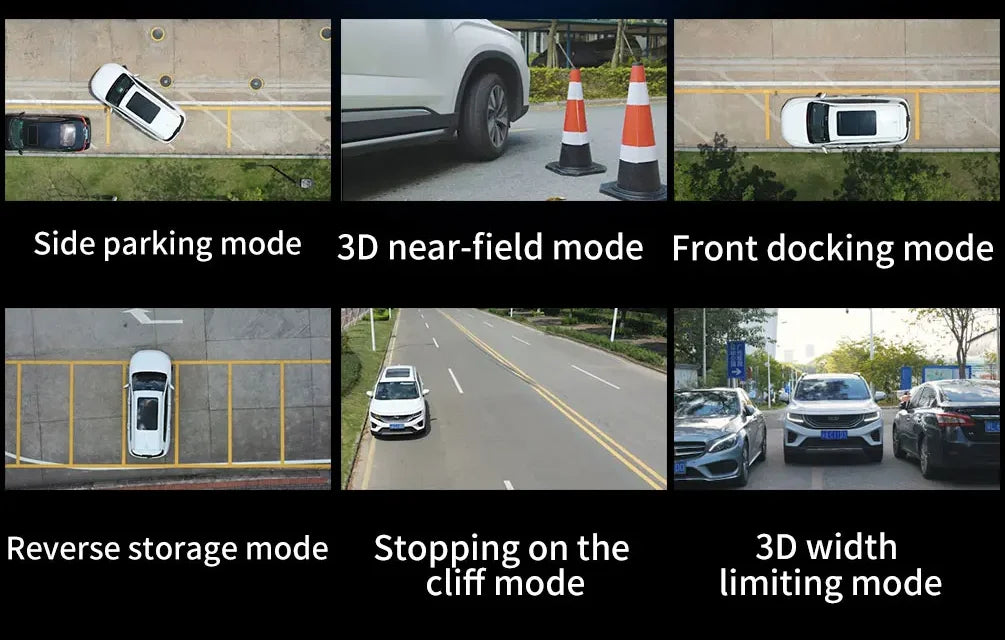

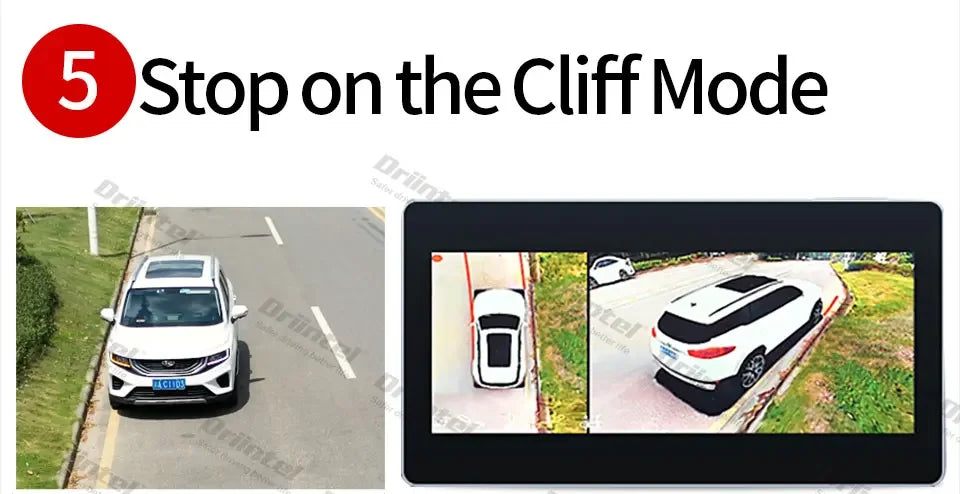

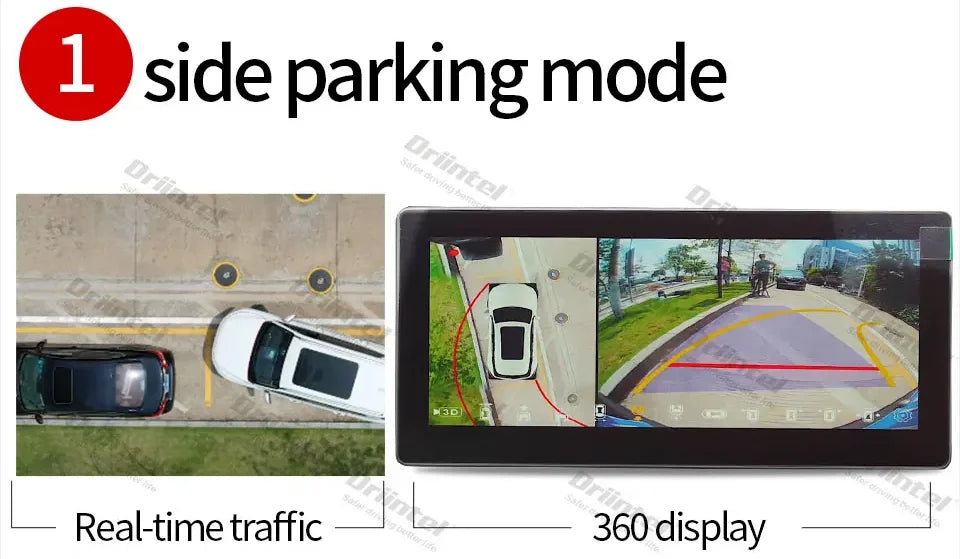

6 Driving Modes
Comparing the actual driving scene and view effects, it is clear at a glance

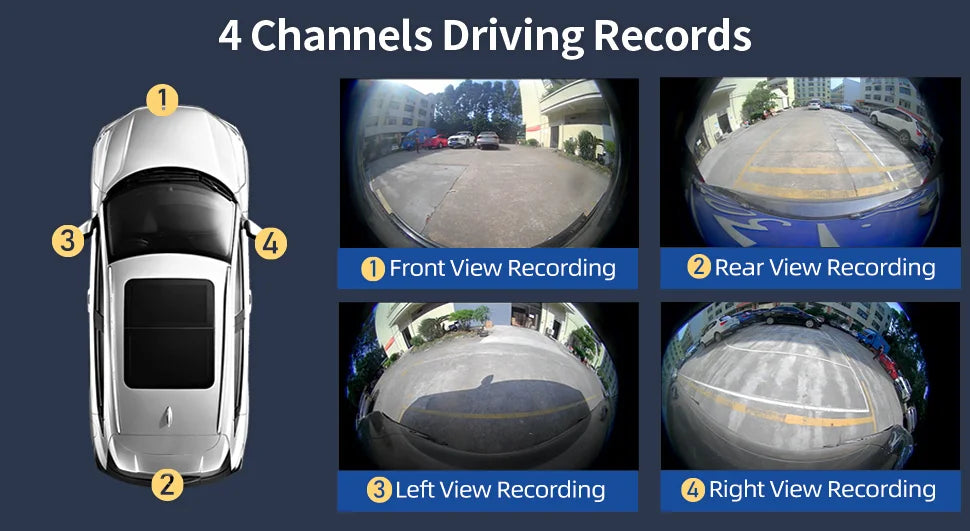

4 Channels Driving Records
• The recorder function requires a USB flash drive to record driving tracks.
• Important: It is recommended to format the USB flash drive every month to avoid excessive cache and inability to record (the machine and computer support this operation).

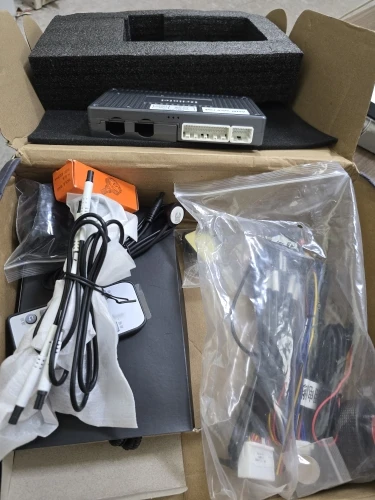

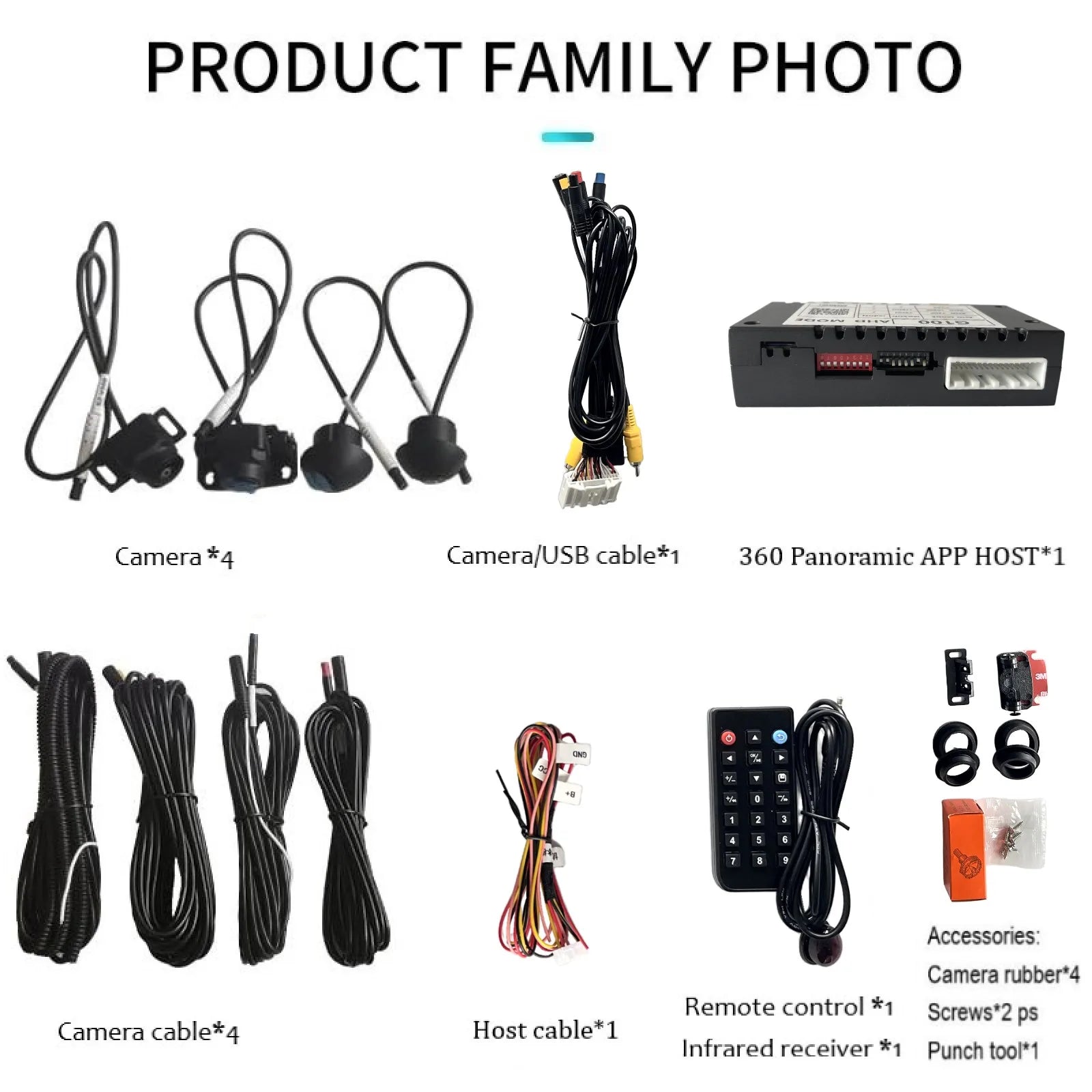

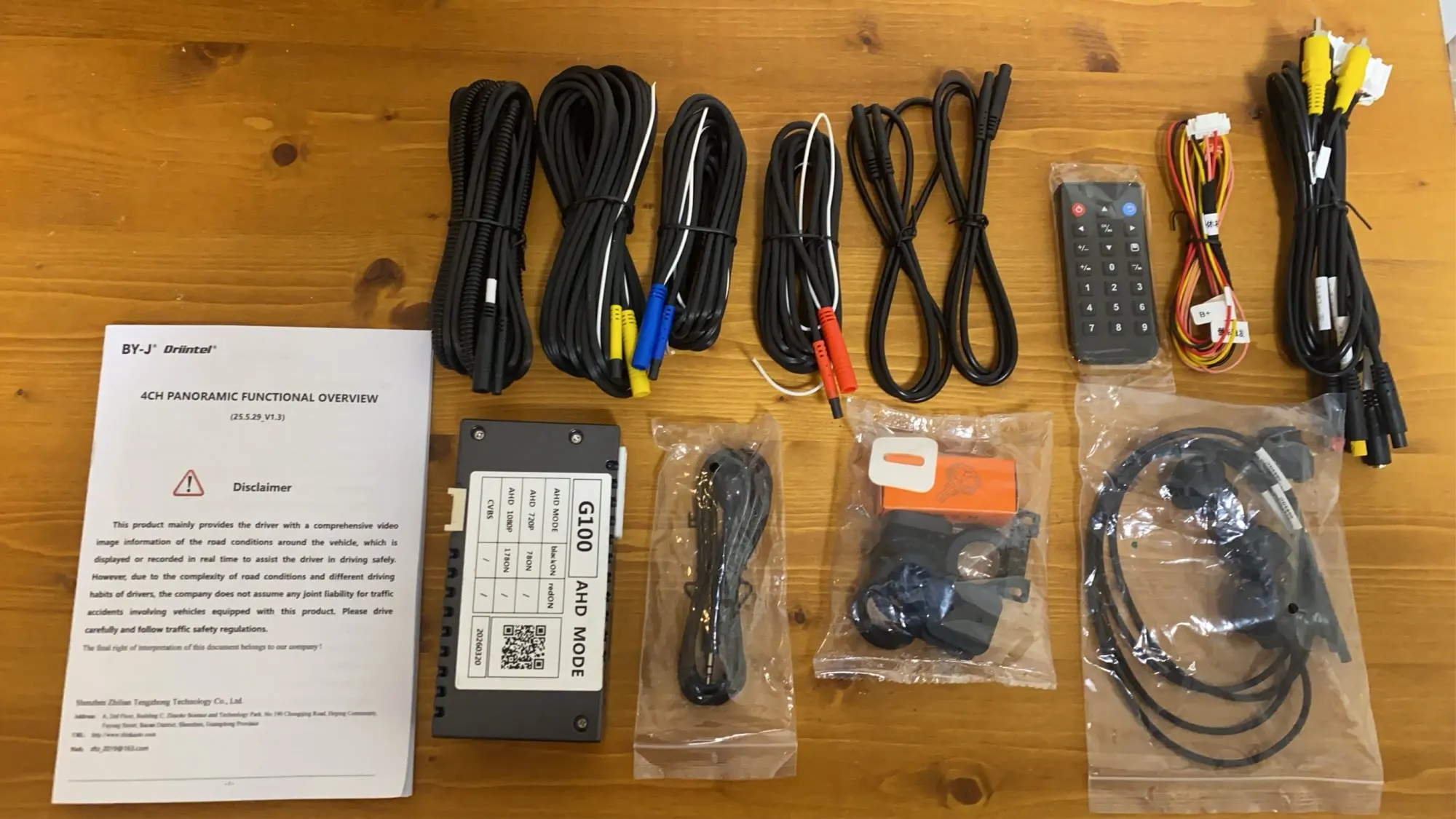

- 4-way driving recorder host ×1
- Camera ×4
- Camera connection cable ×4

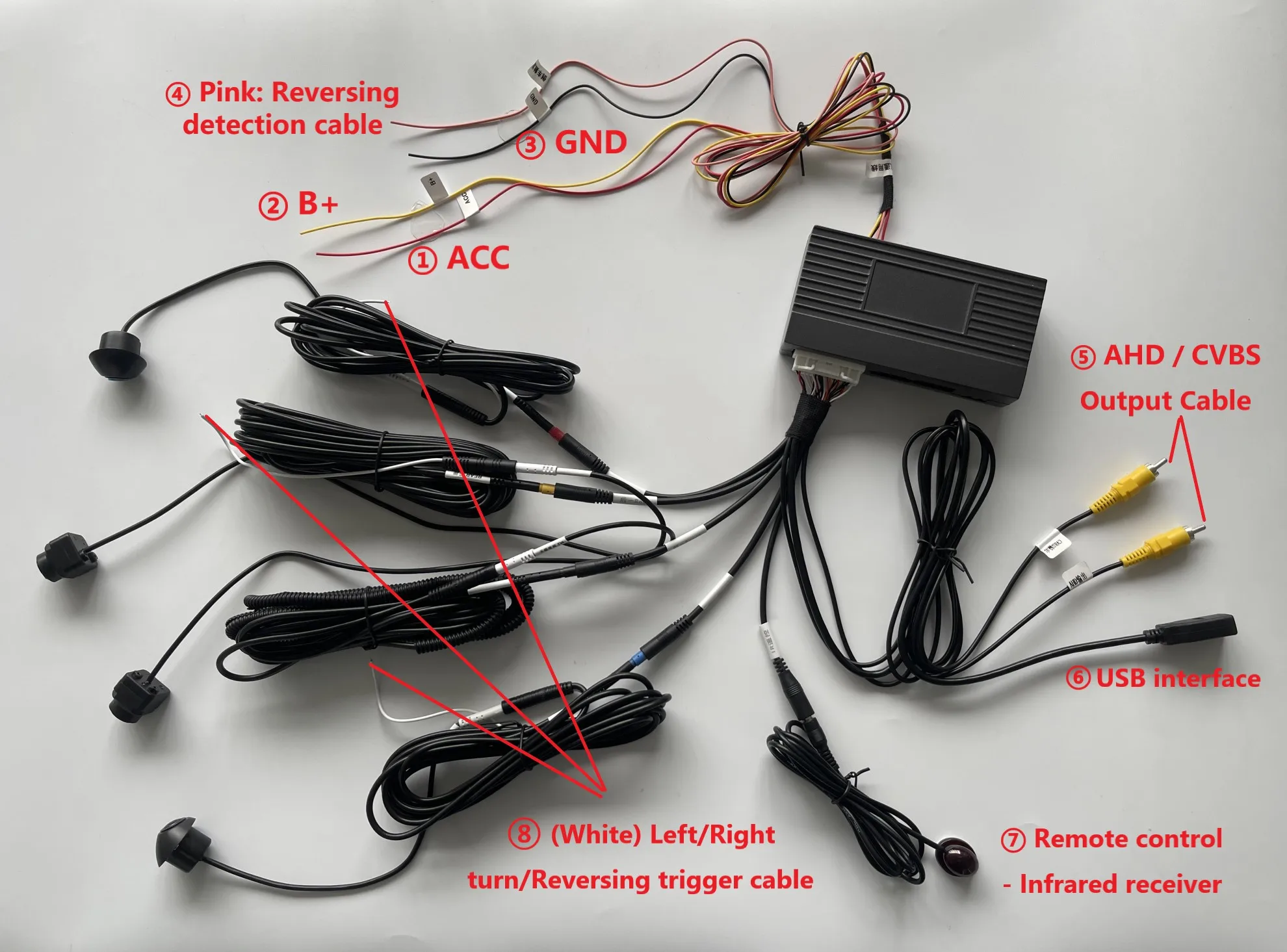

- Power cord ×1
- Camera/Video/USB Cable ×1
- Remote control & Receiver ×1
- Installation accessories package ×1
- User manual ×1
【Frequently Asked Questions】
Q. Is the product equipped with a 360 degree panoramic program host box? Is there no 360 degree panoramic APP program available for screen installation?
A. Yes, it is
Q. How to switch the panoramic screen?
A. Front and rear/left and right view display, switch by shifting gears and turning lights.
Q. How to activate the panoramic image?
① The panoramic image is displayed when the car starts [the default is to automatically turn off after 10-15 seconds, and the duration can be set]
② The rear image is automatically triggered when the R gear is engaged
③ After the R gear is engaged, the front image is automatically jumped when the D gear/N gear is switched
④ The left/right turn signal triggers the left and right images
⑤ The double flash triggers the width limit mode or the panoramic image [any display mode can be set]
Q. Does the video support sound?
A. Only images are supported, not sound.
Q. If no USB storage device is inserted, is recording supported?
A. NO
Q. How much recording time does the USB flash drive memory support?
A. 8G/hour, which will vary depending on the environment and light.
Q. Can I use a USB flash drive larger than 64G?
A. No, the screen may freeze or freeze.
Q. Regarding the setting of the parking monitoring duration?
① You can set it by yourself from 1, 2, 4, 6, 24...48 hours; the specific working time depends on the original vehicle battery;
② This function has a certain risk of vehicle battery loss, please use it with caution;
③ Low power consumption design, equipped with low voltage protection function.
Q. Installation Instructions and Tutorials
A. We provide electronic user manuals in English/Russian/Japanese/Korean.
As well as common product settings and installation steps, which can be accessed via QR code with illustrated tutorials.
Please contact us if needed!
